Development and implementation of a highly-multiplexed SNP array for genetic mapping in maritime pine and comparative mapping with loblolly pine
- Emilie Chancerel†1, 2,
- Camille Lepoittevin†1, 2,
- Grégoire Le Provost1, 2,
- Yao-Cheng Lin3,
- Juan Pablo Jaramillo-Correa4,
- Andrew J Eckert5,
- Jill L Wegrzyn5,
- Diana Zelenika6,
- Anne Boland6,
- Jean-Marc Frigerio1, 2,
- Philippe Chaumeil1, 2,
- Pauline Garnier-Géré1, 2,
- Christophe Boury1, 2,
- Delphine Grivet7,
- Santiago C González-Martínez7,
- Pierre Rouzé3,
- Yves Van de Peer3,
- David B Neale5,
- Maria T Cervera7,
- Antoine Kremer1, 2 and
- Christophe Plomion1, 2Email author
© Chancerel et al; licensee BioMed Central Ltd. 2011
- Received: 18 March 2011
- Accepted: 18 July 2011
- Published: 18 July 2011
Single nucleotide polymorphisms (SNPs) are the most abundant source of genetic variation among individuals of a species. New genotyping technologies allow examining hundreds to thousands of SNPs in a single reaction for a wide range of applications such as genetic diversity analysis, linkage mapping, fine QTL mapping, association studies, marker-assisted or genome-wide selection. In this paper, we evaluated the potential of highly-multiplexed SNP genotyping for genetic mapping in maritime pine (Pinus pinaster Ait.), the main conifer used for commercial plantation in southwestern Europe.
We designed a custom GoldenGate assay for 1,536 SNPs detected through the resequencing of gene fragments (707 in vitro SNPs/Indels) and from Sanger-derived Expressed Sequenced Tags assembled into a unigene set (829 in silico SNPs/Indels). Offspring from three-generation outbred (G2) and inbred (F2) pedigrees were genotyped. The success rate of the assay was 63.6% and 74.8% for in silico and in vitro SNPs, respectively. A genotyping error rate of 0.4% was further estimated from segregating data of SNPs belonging to the same gene. Overall, 394 SNPs were available for mapping. A total of 287 SNPs were integrated with previously mapped markers in the G2 parental maps, while 179 SNPs were localized on the map generated from the analysis of the F2 progeny. Based on 98 markers segregating in both pedigrees, we were able to generate a consensus map comprising 357 SNPs from 292 different loci. Finally, the analysis of sequence homology between mapped markers and their orthologs in a Pinus taeda linkage map, made it possible to align the 12 linkage groups of both species.
Our results show that the GoldenGate assay can be used successfully for high-throughput SNP genotyping in maritime pine, a conifer species that has a genome seven times the size of the human genome. This SNP-array will be extended thanks to recent sequencing effort using new generation sequencing technologies and will include SNPs from comparative orthologous sequences that were identified in the present study, providing a wider collection of anchor points for comparative genomics among the conifers.
- Linkage Group
- Mapping Population
- Pinus Pinaster
- Phred Score
- Polymorphic SNPs
Conifers represent over 670 species , some ranking as the largest, tallest, and longest living terrestrial organisms on Earth. They dominate many terrestrial landscapes, represent the largest terrestrial carbon sink, and provide significant ecological services to human societies. They are also of great economic importance, as they are primarily used for biomass, timber and pulp production worldwide. Domestication of conifers started about 60 years ago through traditional genetic improvement programs , which have resulted in substantial improvements of overall growth, wood quality, pest resistance and adaptation to present and future climatic conditions. However, the long generation intervals and the difficulty of accurately evaluating traits in early stages have hampered progress through breeding . Furthermore, their extraordinary large genome size (seven times higher than the human genome, ) prohibits classical map-based cloning approaches of major-effect quantitative trait loci (QTL).
During the past 20 years, many sophisticated genomic tools have been developed to accelerate the domestication process by exploring in depth their genetic diversity. Linkage maps represent a major tool in genomic-based breeding because of their central role in dissecting the genetic architecture of quantitative trait variation . Moreover, the relatively well conserved genome organization in conifers makes it possible to transfer genetic information from one species to another by comparative mapping (e.g. ). Genetic mapping activities, therefore, will continue to dominate research in conifer genetics  at least until a conifer genome sequence has been completely decoded.
The progress of genetic mapping in conifers is reflected by the development of different generations of molecular markers. The first (RFLP: Restriction Fragment Length Polymorphism) and second generation (RAPD: Random Amplified Polymorphic DNA and AFLP: Amplified Fragment Length Polymorphisms) markers made it possible to construct genetic linkage maps for twelve pine (Pinus taeda, P. pinaster, P. sylvestris, P. strobus, P. radiata, P. palustris, P. elliottii, P. edulis, P. densiflora, P. contorta, P. caribaea, and P. brutia) and four spruce species (Picea abies, P. glauca, P. mariana and P. rubens) (reviewed by ). Furthermore, over the last decade, the increasing availability of expressed sequence tags (ESTs) has provided a valuable source of new PCR-based molecular markers, such as EST-derived microsatellites (EST-SSRs), EST-based polymorphisms (EST-Ps) and single nucleotide polymorphisms (SNPs). Because of their abundance, higher availability and stability compared with simple sequence repeats (SSRs), and the ease with which data can be standardized due to their bi-allelic nature, SNP markers provide enhanced possibilities for genetic and breeding applications, such as construction of linkage maps and detection of genotype/phenotype associations . Several SNP genotyping approaches have been developed in the last few years. These approaches vary in terms of sensitivity, reproducibility, accuracy, capability of multiplexing and throughput [9, 10]. Among the SNP genotyping technologies available to date, the GoldenGate assay developed by Illumina has demonstrated high success rates within plant genomes of differing complexities, such as pea , soybean , barley , maize , spruces  and pines [16–18].
In the present study, a custom GoldenGate assay containing 1,536 SNPs derived from gene sequences was designed to genotype two maritime pine (Pinus pinaster Ait., 2n = 2x = 24) mapping populations, while earlier studies have heavily relied on anonymous markers such as RAPDs  and AFLPs [20–22]. The information contained within each individual map was then synthesized into a single consensus map, from which a set of orthologous markers allowed the alignment with the reference Pinus taeda linkage map. The present study is therefore an important step for advancing comparative genomics in conifers.
Two maritime pine mapping populations were used in this study: (1) a three-generation outbred pedigree (G2) (parental accessions 9.106.3 and 10.159.3; [6, 21]), comprising 201 offspring, and (2) a three-generation inbred pedigree (F2) obtained by the self pollination of an inter- "Landes × Corsica" provenance hybrid (accession H12 resulting from the control cross between L146 and C10 genotypes), resulting in a total number of 500 offspring. Trees of both mapping populations were measured for a series of quantitative traits related to biomass production and wood properties, for which some QTLs have already been detected ( for the G2 and in progress for the F2 population). The sample size used for mapping was 89 and 88 offspring for the G2 and the F2 pedigree, respectively.
DNA extraction and quality control
Young needles were harvested in spring and conserved at -20°C before DNA extraction. Pieces of frozen needles (around 30 - 40 mg) were crushed using a mixer mill (Retsch MM300, Haan, Germany). Isolation of DNA was performed using Invisorb DNA plants 96 kit from Invitek (GmbH, Berlin, Germany) following kit's specific instructions. All concentrations were measured using the fluorescence assay (Quant-IT kit, Invitrogen, Carlsbad, CA, USA). Low values were systematically checked by a second measurement, and all samples with high initial concentrations were diluted to concentrations ranging from 150 to 170 ng/μL. In addition, DNA quality was checked on a subset of samples (about 10%) by loading DNA on agarose gel to estimate its integrity. All samples that did not met the concentration and quality criteria recommended by Illumina for GoldenGate assay were excluded from further steps.
EST production and assembly
A total of 40,774 ESTs were obtained from wood forming tissue, root, needles and vegetative bud (Additional file 1). Base calling and quality assessment were determined using the Phred software . Vector and adaptor sequences were trimmed using cross-match  and custom Perl scripts. As sequence data vary in quality, an automatic inspection was performed and sequences > 60 bp long and containing more than 90% of nucleotides with high quality (Phred score > 20) were kept. Finally, 31,678 informative reads were used for the assembly using stackPACK™ [26, 27], resulting into a unigene set comprising 4,483 contigs (including 22,431 ESTs) and 9,247 singletons.
Number of polymorphisms detected and selected in the different sequencing sets.
Number of polymorphisms (number of fragments or contigs represented)
Number of fragments or contigs available for detection
score ≥ 0.4
Selected for the assay
in vitro polymorphisms, set 1
in vitro polymorphisms, set 2
in silico polymorphisms, set 3
Finally, a set of in silico polymorphisms (set 3 in Table 1) was detected in the maritime pine EST assembly. Only the 1,532 unigene elements containing at least four sequences were considered. The SeqQual pipeline was also used to mask nucleotides with Phred scores below 30, and the snp2illumina script was used for automatic polymorphism detection (with the same criteria as cited above, i.e. detection depth ≥ 4 and no singleton).
SNP selection for customized 1,536-GoldenGate array construction
For the 1,536-SNPs GoldenGate array design, we first included 229 SNPs previously validated on maritime pine Aquitaine populations with the same genotyping technology , including 110 in vitro polymorphisms from 35 of the 49 re-sequenced candidate gene fragments previously described, and 119 in silico SNPs detected in a maritime pine unigene assembly. For the additional 1,307 SNPs, priority was given to in vitro polymorphisms. We only included polymorphisms showing designability score above 0.4, which is the lower limit for genotyping success according to the manufacturer. This score is provided by ADT software and is similar to a predicted probability of genotyping success, taking into account the sequence conformation around the SNP and the lack of repetitive elements in the surrounding sequence . Following Illumina's recommendation, the main technical constraint was that the selected polymorphisms should be separated by at least 60 nucleotides from each other. When several polymorphisms occurred within this limit, it was decided to filter out the lowest frequency variants and polymorphisms showing high level of linkage disequilibrium with other selected polymorphisms of the same fragment. Finally, with the goal of mapping as many different loci as possible, emphasis was given to breath of coverage (i.e. 1 SNP per gene for a large number of genes) versus depth of coverage (i.e. as many SNPs as possible per gene for a low number of genes). We used BlastN analysis  to ensure that in vitro and in silico polymorphisms belonged to different genes. We also blasted each amplicon to avoid including in the array members of the same gene family that had high homology in the sequence surrounding the target SNP.
SNP genotyping assay
Linkage mapping strategy
G2 map construction
Linkage analysis was conducted using the "two-way pseudo-testcross" mapping strategy  and independent linkage maps were constructed for each parental tree. Polymorphic SNP markers were classified into two categories according to their segregation proportions: (1) test-cross markers segregating 1/2: 1/2 (heterozygous in one parent and homozygous in the other) or (2) inter-cross markers segregating 1/4: 1/2: 1/4 (heterozygous in both parents). The polymorphic SNPs were combined with 619 other markers (including AFLPs, SSRs, EST-Ps and additional SNPs; see additional file 4) available from previous studies [6, 21, 23]. Mendelian segregation ratios were tested using χ2-square tests (P < 0.01). Linkage analyses and map estimations were performed with JoinMap v 4.0  using CP (Cross Pollinators) as population type. Recombination frequencies were converted into map distances in centiMorgans using the Kosambi mapping function . All available markers were first grouped at a minimum LOD threshold of 3.0. Linkage groups (LGs) were named according to the nomenclature used for loblolly pine, as homologous LGs to this reference species were identified (see Results section). Once the different groups were determined, the female and male maps were built independently using the regression algorithm. The procedure is basically a process of building a map by adding loci one by one, starting from the most informative pair . When using a high number of markers genotyped on a variable number of offspring, this procedure generally leads to the construction of 3 different maps with decreasing statistical support (denoted as map1, map2 and map3), indicating difficulties to reliably order markers within linkage groups. Because the different types of markers were genotyped on different number of samples (ranging from 46 to 201 trees; see additional file 4), we followed a framework mapping approach, where framework markers segregating 1/2: 1/2 (ordered with the highest statistical support, map 1) were selected (mainly among AFLPs genotyped on 201 F1s) and used as anchor points to localize poorer fitting loci (accessory markers). The relative position of each accessory marker to its most probable framework marker was then provided using the two-point LOD scores and recombination fractions available in the "maximum linkage" table of JoinMap.
Total genome size, G, was estimated from Hulbert et al.  modified by Chakravarti et al. (; Method 3), as G = [N*(N-1)*X]/K in which N represents the number of framework markers in the map, X is the maximum observed map distance between two markers for which the expected value of LOD score is z (here 3, 4 and 5) and K is the observed number of locus pairs with LOD score ≥ z.
F2 map construction
Consensus map construction
One of the objectives of this study was to construct a consensus map of the species based on SNP markers. To this end, the two datasets (except AFLP markers for the G2 pedigree) were combined assuming homogeneous recombination rates between the two studied populations and between the male and female linkage maps of the G2 mapping population (but see ). The construction of an integrated map required the estimation of a single recombination rate for each SNP marker pair based on all available meioses, irrespective from which crosses the genotypic data had been derived. Heterogeneity of recombination rate between SNP marker pairs was tested between the two pedigrees using the "Heterogeneity test" implemented in JoinMap v 4.0.
Comparative mapping between maritime and loblolly pines
Homology between loblolly (Pinus taeda) and maritime pine sequences, from which SNPs were derived for linkage mapping in maritime pine, was established using sequence similarity as assessed with MegaBlast . Resequenced data from maritime pine were queried against the 5,811 EST contigs in loblolly pine, of which approximately 20% are located on its consensus linkage map. Visual inspection of Blast results was carried out to eliminate results due to small regions of homology (i.e. hit coverage in P. pinaster < 75%), as was observed among different members of the same gene family. In this case, a small to moderate portion (< 75% of the sequence length) of the maritime pine sequence was similar to multiple loblolly pine EST contigs. These EST contigs in loblolly pine also shared strong sequence homology (e.g. 90% identity) among themselves in the same region as the Blast hit, suggesting that this region was conserved across paralogs. In these cases, the loci were excluded because orthology was difficult to establish.
This a posteriori approach yielded poor results (see Results section). With the main goal of providing a priori a wider set of comparative anchor sequences (COS) between the two most studied gymnosperm genera (Pinus and Picea) we carried out the following bioinformatic analysis. The pine and spruce unigene datasets were downloaded from the TGI (The Gene Index project) version 7.0 and 3.0 with 61,864 and 80,494 unique sequences, respectively. Single copy COS markers were detected using a two-step approach, starting with the filtering of paralogous sequences within genera, followed by the identification of conserved sequences between genera. In the first step, single copy genes within species were identified as follows: (1) each unigene was self-BlastN against itself using parameters of word size 28, penalty for a nucleotide mismatch -2, reward for a nucleotide match 1, filter off and the e_value < 1e-15 with MegaBlast search, (2) we then used the TribeMCL clustering algorithm  to identify homolog sequences in each dataset. Based on the TribeMCL clustering result, we defined the sequence that did not form a gene family with other sequence(s) as a singleton. In the second step, shared single-copy genes between Pinus and Picea were searched by joining singletons from both genera into one dataset and self-BlastN using the same parameters as described above. Alignments for which coverage was less than 60% of the shortest sequence and identity did not exceed 80% were removed. TribeMCL clustering was then conducted on the post-processed BlastN result to construct gene families. A COS marker was finally defined as a sequence presenting one single unigene from Pinus and Picea within the same family.
The COS marker dataset was finally searched against the maritime pine EST assembly to identify the orthologous sequences in our dataset. In order to eliminate false-positive COS markers, the pine and spruce unigenes were searched against two plant protein databases using BlastX: PLAZA (, containing Populus trichocarpa, Arabidopsis thaliana, Carica papaya, Vitis vinifera, Oryza sativa, Sorghum bicolor, Physcomitrella patens, Chlamydomonas reinhardtii and Ostreococcus lucimarinus protein-coding genes; ) and NCBI non-redundant (nr) protein database. COS markers were divided into five categories according to the presence or absence of hits in the queried databases, providing a range of confidence level in representing the COS markers: COS markers in category A display best hits either with PLAZA or NCBI nr protein databases; in category B, COS only hit in the NCBI nr protein database; for category C, COS are only found in the maritime pine unigene set; for category D, COS are only present in the pine and spruce TGI unigene; and in category E, COS most likely correspond to paralogs or to alternative splice events in the pine and spruce genome. Thus, these five categories provide a range of sequence conservation and possible duplication history of COS markers (from A - conserved with other plant genomes to D - conifer specific and E - duplicates).
SNP array construction
A total of 2,250 in vitro SNPs (572 from candidate genes and 1,678 from the CRSP resequencing project) and 4,376 in silico SNPs were detected in the different data sets (Table 1). About 61% of the in vitro SNPs had acceptable designability scores (≥0.4), as opposed to 33% for in silico SNPs. A 1,536 GoldenGate SNP array was built from the 229 SNPs (including 110 in vitro and 119 in silico polymorphisms) located in 132 different gene fragments previously validated in a GoldenGate array on the maritime pine Aquitaine populations , the 597 in vitro SNPs detected in either resequenced candidate genes (37 SNPs in 19 genes) or in data from the CRSP resequencing project (560 SNPs in 325 amplicons), and, the 710 in silico SNPs detected in 424 contigs from the maritime pine EST assembly. These 1,536 SNPs were distributed in 885 non-redundant gene fragments or contigs.
SNP genotyping statistics
Out of the 1,536 SNPs, 707 and 829 markers were classified as in vitro or in silico SNPs (see Methods section). The average sample success rate (i.e. the percentage of successfully genotyped SNPs per DNA sample) was 86.5% and 88.4% for the G2 and the F2 mapping populations, respectively. After the first screening step which excluded failed markers, a total of 529 (74.8%) in vitro and 527 (63.6%) in silico SNPs remained and were made available through the NCBI database (, see additional file 3 for accession numbers). There was a statistical association between SNP origin (in vitro vs. in silico) and the proportion of failed SNPs, which was greater for in silico SNPs [χ2 = 21.97, P = 2.77 × 10-6].
Before the construction of the SNP bead array, a designability score (called SNPScore) was given to each SNP by the Illumina Assay Design Tool. This score ranges from 0 to 1, with higher values reflecting greater ability to design a successful assay, and 0.6 being the lowest threshold recommended by Illumina to design the GoldenGate OPA (Oligo Pool Assay). In our study, the mean Illumina SNPScore for successfully genotyped SNPs (i.e polymorphic and monomorphic SNPs) and failed SNPs were 0.85 [min: 0.4; max: 1] and 0.75 [min: 0.4; max: 1], respectively, which indicates that 94.1% of the successful and 78.3% of the failed SNPs corresponded to Illumina's recommendation (i.e SNPScore ≥ 0.6). A Chi-square test for independence confirmed earlier findings  that there is a significant correlation between SNPScore and the success rate for the conversion of a SNP into a successful genotyping assay [χ2 = 83.78, P = 2.2 × 10-16]. We also found a higher proportion of SNPs with SNPScore ≥ 0.6 for in vitro than for in silico SNPs [χ2 = 22.71, P = 1.88 × 10-6], suggesting that failed assays for in silico SNPs were due, at least in part, to lower designability scores. This being said, it should be pointed out that several SNPs with relatively low SNPScore (0.4-0.6) were still successful. A relaxed criterion could thus be attempted especially for those non model species for which few SNPs are available or for some SNPs in candidate genes of interest.
Identification of informative SNPs
Validation of the SNP genotyping assay
The presence of several SNPs within the same amplicon (for in vitro SNPs) or contig (for in silico SNPs) provided a unique opportunity to validate the genotyping assay by checking the inconsistency between offspring genotype assignments of physically linked SNPs. For the G2 population, 40 contigs presented more than one SNP. From a total of 3,322 data points we only detected 13 recombination events between SNPs belonging to the same contig, which translates to a genotyping error of 0.4%, if we consider that the probability of crossover within a contig of a few hundred base pairs long is null. For the F2 population, there were 21 contigs containing more than one SNP totalizing 1,543 data points, from which 7 recombination events were observed (i.e. 0.4% error rate). These results confirm the GoldenGate assay reproducibility in maritime pine as previously reported .
Construction of individual genetic linkage maps
Statistics of individual and consensus linkage maps for the G2 and F2 mapping populations.
Number of linkage groups
13 (♀), 14 (♂)
Type of markers used for mapping
AFLP, EST-P, SSR, SNP
EST-P, SSR, SNP
Number of polymorphic SNPs
Number of mapped SNPs
Number of mapped contigs
Number of unlinked SNPs
Number of distorted mapped SNPs (P < 1%)
Comparative mapping between F2 and G2 linkage maps
A total of 98 SNPs (belonging to 89 contigs) were mapped in both mapping populations. Their distribution along the 12 LGs is shown in additional file 6, and varies from 1 anchor marker for LG8 to 12 for LG2. On average, homologous LGs between the F2 and G2 maps were assigned based on 8 common SNPs (from 7 common contigs) per LG. Marker order between the two maps was generally consistent when taking into account the regions covered by homologous markers (Figure 2, additional file 5). Only six marker pairs showed significant heterogeneity in recombination rate at the 1% level, out of the 457 pairwise comparisons derived from SNPs simultaneously mapped in both populations, which is close to the number expected by chance alone. This result suggests that recombination fraction is homogeneous between the two studied populations, and that the consensus map is a reasonable approximation of the marker order that can be used for comparative mapping.

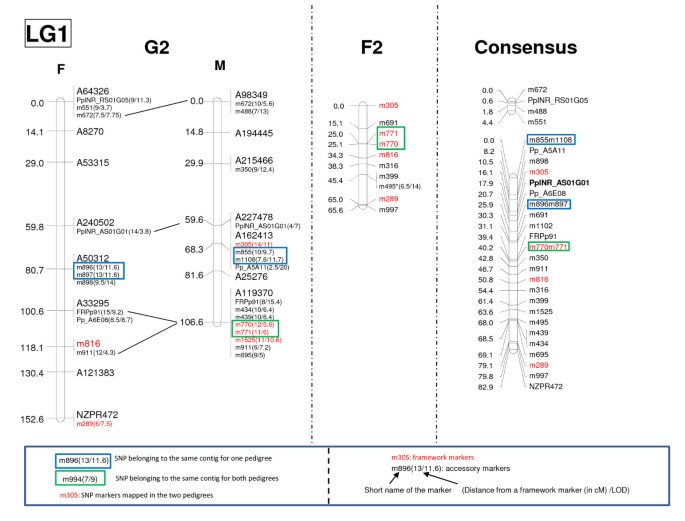

Consensus map construction
When the three individual maps were merged into a single consensus map, 357 SNPs (from 292 contigs) were mapped onto 24 LGs, with a minimum of 18 SNPs in LG8 and a maximum of 42 SNPs in LG5. The 24 consensus LGs covered a distance of 1,320 cM, with a length ranging from 78 to 145 cM, and the distance between adjacent markers (comprising all types of markers without accessory markers) averaging 4 cM. The marker order was generally well conserved between the individual and consensus maps.
Genome size estimation
Observed map lengths ranged from 869 cM for the F2, to 1,571 and 1,726 cM for the G2 male and female maps, respectively. Estimated genome sizes computed for different statistical support for linkage (LOD 3-4-5) varied from 2,490 to 2,700 cM for the G2 female map, from 2,400 to 2,765 cM for the G2 male map, and from 2,238 to 3,252 cM for the F2 map, with an average of 2,500 cM. Given a physical size of 51.5 pg/2C , 1 cM would correspond to 10.3 Mb/cM on average.
Comparative mapping between maritime and loblolly pines
Identification of COS markers between Pinus and Picea
A total of 22,434 and 19,606 single-copy genes from pine and spruce TGI unigenes were identified in the first clustering attempt. A second attempt, with more stringent BlastN filtering parameters, resulted into 1,265 COS markers (additional file 8), that were split into five categories: (1) 1,087 COS markers presenting a best hit either with plant or NCBI nr protein database, (2) 16 COS markers showing a hit only with the NCBI nr database, (3) 22 COS markers with no hit with both protein databases but showing at least one homolog with the maritime pine dataset, (4) 74 COS markers only present in the pine or spruce TGI unigenes, and (5) 66 COS markers potentially corresponding to duplicated genes within the pine or spruce genomes. Markers in the first class should be considered as the main target for further development in view of comparative genomic surveys in conifers.
The global success rate (i.e percentage of SNPs successfully genotyped, considering both monomorphic and polymorphic SNPs) obtained for the SNP array developed in the present study was 68.75%. This result is similar to that achieved for a 384-GoldenGate SNP array on the same species (66.9%; ). Such similar success rate indicates that higher multiplex levels of GoldenGate arrays do not affect the assay's effectiveness. However, the success rate was statistically different between in vitro (74.8%) and in silico (63.6%) SNPs. There are many causes of genotyping failures in EST-derived SNPs . First, in EST sequences, sequencing errors can lead to the identification of false-positives. In the present study this factor was however minimized by setting a minimum detection depth of 4 sequences for in silico SNPs and by removing singletons. Second, low quality of SNP flanking sequences, non-identified polymorphisms nearby the targeted SNP and the possible presence of exon-intron junctions close to targeted polymorphic sites can also lead to genotyping failures. Screening for Phred scores above 30 allowed coping with the former source of failure, while the two latter were controlled for in vitro polymorphisms only and may have contributed to the observed difference in success rate. Finally, as indicated by Shirasawa et al. , failed SNPs may be designed on multi copy genes and may disrupt the fluorescent signal cluster on the analysis software. Because in vitro SNPs were obtained from single copy locus (see Methods), in silico SNPs were certainly affected to a greater extent by this problem.
The conversion rate (i.e percentage of polymorphic SNP) in this study was 19.5% for the G2 and 12.5% for the F2 mapping populations. We did not find statistical differences in terms of percentage of polymorphic SNPs between in vitro and in silico derived SNPs. In fact, SNPs were not a priori screened for their polymorphism in the mapping pedigrees, which resulted in a relatively low percentage of polymorphic markers. These figures are quite similar to those obtained by Jermstad et al.  for two sugar pine mapping populations, which had a conversion rate of 12.3% and 18.4%. On the other hand, higher SNP conversion rates (69.2% and 77.1%) were obtained by resequencing amplicons of parental lines of mapping populations of white and black spruce, respectively . Such an approach is thus an efficient method for tracking informative SNPs for linkage analyses [17, 48].
Consensus linkage map and genome size (in cM) estimation
The genome size of Pinus pinaster was first estimated from low coverage protein based linkage maps by Gerber and Rodolphe  who obtained sizes ranging from 1,400 to 2,300 cM depending on the method and the data set used. Later on, Echt and Nelson  narrowed down this estimate to 1,880-2,084 cM with an extended marker dataset. In the present study, genome size was estimated for two other mapping populations and three different LOD score thresholds following method 3 of Chakravarti et al. . On average, our genome size estimate amounted 2,500 cM, which is higher than earlier reports on the same species but in the range of estimates obtained for other pines from partial linkage data: 2,639 cM for Pinus sylvestris, 2,612 to 2,656 cM for Pinus palustris and 2,407 cM for Pinus contorta subsp. latifolia .
Comparing genome size estimates between three species, Pinus pinaster, Pinus strobus and Pinus palustris, Echt and Nelson  showed that pines have similar genome lengths, suggesting a highly conserved genomic rate of recombination across species. The differences in genome size estimations observed in the literature may be due to the choice of the mapping function and to variations in the recombination rates of pollen and seed parents [39, 54]. Furthermore, the use of different methods to estimate genome size, such as method 2 of Hulbert et al. [37, 38] or method 3 modified by Chakravarti et al.  can also bias the estimations , while discrepancies can also be produced by either genotyping errors that inflate the Hulbert genome size estimator and/or the non-random clustering of markers such as AFLPs [54, 55].
In the present study, a consensus map of maritime pine was generated from segregation data obtained in full-sib (G2) and selfed (F2) populations. The integrated map provided the relative position of 280 framework and unique SNPs, as well as additional 74 markers (SSRs, EST-Ps, candidate genes). The consensus map comprised 354 markers in total, with two adjacent markers spaced by 4 cM on average. With these parameters, we estimated, the coverage of maritime pine genome using the formula: c = 1-e-2dn/L, with c representing the proportion of the genome within d cM of a marker, where L is the estimated genome length and n is the number of markers. Assuming a random distribution of markers, a genome size of 2,500 cM and an average marker spacing of 4 cM, the estimated proportion of the maritime pine genome covered by our analysis was 67.8%. In order to evaluate the number of markers needed to cover 95% of the expected maritime pine genome (2,500 cM), we used an additional formula developed by Lange and Boehnke , i.e. n = [log(1-p)/log(1-2c/k)], where n is the minimum number of randomly distributed markers needed to cover a proportion p, of a genome size k, at a maximum distance of 2c between two adjacent markers. We estimated that 373 and 935 markers were necessary to cover 95% of the genome with a maximum distance of 20 or 4 cM between markers, respectively.
The consensus map was comprised of 24 linkage groups, while the haploid number of chromosomes for Pinus is 12. However, the 354 markers mapped are not far away from the number of markers expected to cover 95% of the genome for a maximum distance of 20 cM between markers. This suggests that the markers are probably not distributed randomly along the genome and that more markers should be needed to saturate the map. As suggested by Sewell et al. , the gaps between the split linkage groups belonging to the same unit may represent a non-random sampling of the genome resulting from an under-representation of markers from these regions. Li and Yeh  indicated that small pedigree size and low linkage information content can also cause undetected linkages when a small number of genetic markers are used. When a large number of markers are used, unresolved linkages can be observed because markers are clustered into large regions separated by several gaps. In the present study, the consensus map integrated linkage data of only 87 shared SNP loci from two mapping populations of about 90 offsprings, the 267 other SNPs segregating in only one pedigree. In order to fill in the gaps between split linkage groups and thus saturate the consensus map, we should increase the sample size (or the number of pedigrees) and the number of anchor markers between mapping populations.
Comparative mapping between loblolly and maritime pines and resource development for comparative genomics in conifers
Comparative mapping consists of studying the conservation of gene content (synteny) and order (colinearity) in the genome of related species and allows inferring chromosome evolution and transferring genetic information between species. Comparisons are generally made by detecting orthologous loci through sequences homology or conserved map regions [57, 58]. Loblolly pine has emerged as a reference species for comparative mapping in the Pinaceae [7, 16]. Comparative mapping was already investigated between P. taeda and other Pinus species using putatively orthologous markers [17, 58–60]. Macro-synteny was also reported between maritime and loblolly pines  and 32 shared EST-Ps made it possible to identify 10 homologous LGs. In the present study, we made an a posteriori search for additional orthologous loci between markers mapped on loblolly and maritime pines. We identified 50 putative COS markers of which 46 showed multiple parallel linkages between 7 linkage groups; the remaining 4 COS markers mapped in non orthologous linkage groups, thus suggesting that they belonged to different members of the same gene families. Altogether, 77 COS markers (31 EST-Ps and 46 SNPs) allowed alignment of all 12 homologous linkage groups between both pine species. Macro-synteny and macro-colinearity were generally well conserved, but some inconsistencies in the marker order within LGs were observed. Such inconsistencies can be attributed either to different members of gene families with different map positions within the same LG, or to the low resolution of the marker order in the consensus map, because of a low number of anchor loci. To ensure that future comparative mapping studies will rely on an a priori defined set of orthologous markers instead of defining orthology between mapped markers a posteriori, we have provided a set of COS markers between the two most economically important conifer genera Pinus and Picea.
The present study demonstrates the usefulness of highly multiplexed SNP genotyping arrays to rapidly generate informative molecular markers showing Mendelian segregation in different mapping pedigrees and to establish the first SNP-based genetic linkage map in non-model species such as maritime pine. The genotyping of five other maritime pine mapping populations is underway and will allow us to create a more precise and denser consensus map for this species. The sequencing of parental lines of these mapping pedigrees has recently been carried out using 454-Roche sequencing to extend the set of informative SNPs (data available on the Short Read Archive of the NCBI). Crossing this extended set of SNPs to the COS markers identified in this study will provide new resources for high resolution comparative genomics at the dawn of the first conifer full-genome sequences.
