Discovering genes associated with dormancy in the monogonont rotifer Brachionus plicatilis
BMC Genomics volume 10, Article number: 108 (2009)
Microscopic monogonont rotifers, including the euryhaline species Brachionus plicatilis, are typically found in water bodies where environmental factors restrict population growth to short periods lasting days or months. The survival of the population is ensured via the production of resting eggs that show a remarkable tolerance to unfavorable conditions and remain viable for decades. The aim of this study was to generate Expressed Sequence Tags (ESTs) for molecular characterisation of processes associated with the formation of resting eggs, their survival during dormancy and hatching.
Four normalized and four subtractive libraries were constructed to provide a resource for rotifer transcriptomics associated with resting-egg formation, storage and hatching. A total of 47,926 sequences were assembled into 18,000 putative transcripts and analyzed using both Blast and GO annotation. About 28–55% (depending on the library) of the clones produced significant matches against the Swissprot and Trembl databases. Genes known to be associated with desiccation tolerance during dormancy in other organisms were identified in the EST libraries. These included genes associated with antioxidant activity, low molecular weight heat shock proteins and Late Embryonic Abundant (LEA) proteins. Real-time PCR confirmed that LEA transcripts, small heat-shock proteins and some antioxidant genes were upregulated in resting eggs, therefore suggesting that desiccation tolerance is a characteristic feature of resting eggs even though they do not necessarily fully desiccate during dormancy. The role of trehalose in resting-egg formation and survival remains unclear since there was no significant difference between resting-egg producing females and amictic females in the expression of the tps-1 gene. In view of the absence of vitellogenin transcripts, matches to lipoprotein lipase proteins suggest that, similar to the situation in dipterans, these proteins may serve as the yolk proteins in rotifers.
The 47,926 ESTs expand significantly the current sequence resource of B. plicatilis. It describes, for the first time, genes putatively associated with resting eggs and will serve as a database for future global expression experiments, particularly for the further identification of dormancy related genes.
The phylum Rotifera is a relatively small group of microscopic aquatic or semi-aquatic invertebrates, encompassing about 2,000 species of unsegmented, bilaterally symmetrical pseudocoelomates. The species under study, the monogonont rotifer Brachionus plicatilis, is a zooplanktonic invertebrate, typically found in water bodies where environmental factors restrict population growth to short periods lasting days or months. The adverse conditions for growth include evaporation of water in temporary habitats leading to desiccation, unfavorable temperatures, and lack of food or appearance of predators. This is a relatively hostile environment and the survival of the population in such conditions is ensured via the production of resting eggs. These show a remarkable tolerance to unfavorable conditions and may be stored for decades [1, 2]. Their high reproductive rates facilitate colonization of vacant niches with extreme rapidity, converting primary production (algal and bacterial) into a form usable for secondary consumers with remarkable efficiency . Consequently, the euryhaline rotifer Brachionus plicatilis, has been developed as an essential food source for raising marine fish larvae in marine fish hatcheries (reviewed in ).

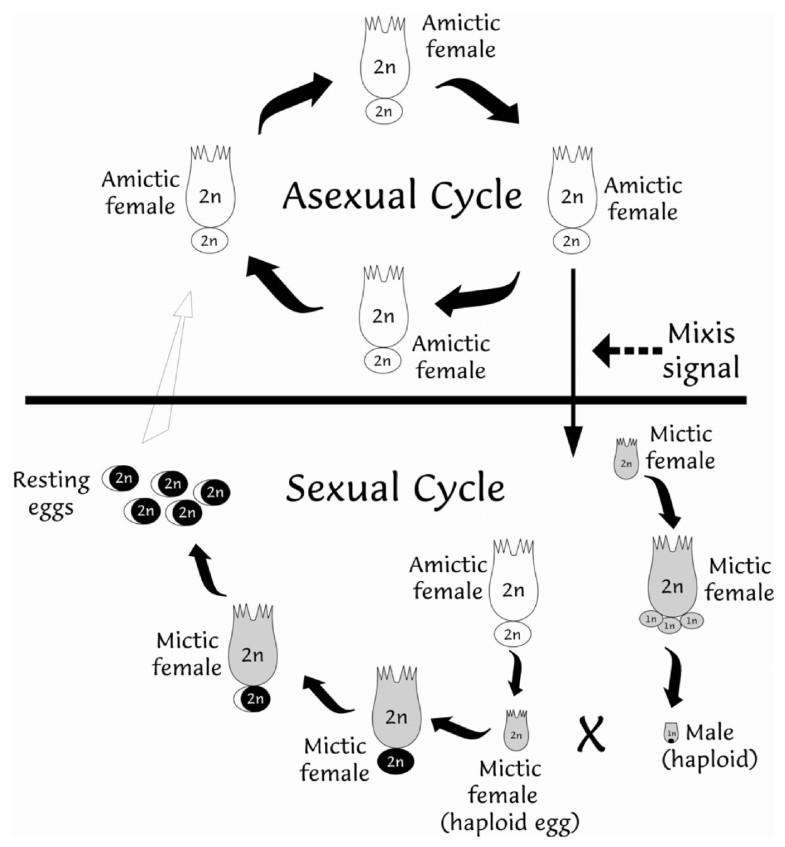

Brachionus plicatilis shows periodic parthenogenesis, where asexual reproduction is prevalent but under certain circumstances sexual reproduction occurs (Figure 1). Parthenogenesis dominates (amictic phase) the monogonont life cycle in the absence of males, but following certain environmental cues, sexual reproduction (mictic phase) takes place. Females that reproduce asexually are termed "amictic" and females that reproduce sexually are "mictic". Amictic females produce diploid eggs that develop by ameiotic pathenogenesis into females. Mictic females are morphologically similar to amictic females but produce haploid (mictic) eggs via meiosis. These eggs will develop parthenogenetically into haploid males but if these mictic females are fertilized they will produce diploid resting eggs. The haploid males are significantly smaller than the females and move faster. The mictic females produce resting eggs only if they are inseminated at a young age. Resting-egg production is therefore a consequence of switching from an asexual type of reproduction to sexual reproduction. Resting eggs then undergo obligatory diapause or dormancy, eventually hatching as amictic females [2, 5–8]. It has also been suggested that certain clones show a higher tendency for sexual reproduction and resting-egg production than others, within the same population [9, 10]. The factors inducing the mixis signal are largely unknown, although population density and environmental factors such as salinity, presence of pheromones and food availability have been shown to play a role [11–15].
Clues for the biological processes underlying the dormant stage can be inferred from other organisms, such as spores, plant seeds, cysts or resting eggs that display cryptobiosis where the metabolic rate is extremely low (~5% of normal) and associated with profound changes within the cell [16, 17]. Cryptobiosis is associated with desiccation or anhydrobiosis and involves protectants that stabilize cellular macromolecules for periods extending many years . These processes are often associated with the onset of stressful environmental conditions. However, production of rotifer resting eggs is not always stress related and resting eggs do not necessarily undergo desiccation during their dormant period and therefore it remains to be shown whether these eggs express genes associated with stress resistance and desiccation tolerance. To date, there have been very few molecular studies on B. plicatilis and these have been mainly limited to single gene studies on aging and environmental contamination [18–20] and a small-scale EST project . None of these relate to resting-egg formation or dormancy.
The aim of the present study was to develop EST resources of B. plicatilis for future molecular analyses into the dormancy process in this organism. Four EST libraries were constructed: a mixed stage rotifer culture, females with resting eggs, resting eggs and resting eggs during hatching. The libraries were normalized in order to increase the chances of discovering rarely expressed genes. In addition, four subtractive libraries were constructed with the aim of enhancing the gene diversity of the ESTs. In this paper we characterize the EST libraries and identify putative genes associated with dormancy, formation and survival of rotifer resting eggs.
Results and discussion
A total of 47,926 sequences remained after clone sequencing and quality checking and these had a minimum transcript size of 100 bp and an average of 538 bp. Sequencing effort was concentrated on the normalized libraries, which comprised 91.2% of the dataset, with between 21.5–24.9% contributed by each library (Table 1). Preliminary sequencing was performed on the subtractive libraries (approximately 1000 clones each) and therefore these only comprise 8.8% of the EST sequences (Table 2). The gene discovery and diversity rates of all libraries are relatively high (0.53–0.68 and 0.36–0.46 respectively) with the exception of the sbs04 subtractive library. Gene discovery is defined as the number of different "genes" each library contributed, divided by library size and gene diversity is defined as the number of singletons in each library divided by library size .
In spite of the subtractive process, this library was still highly redundant, potentially indicating massive gene redundancy within mictic females and their associated resting eggs. Ten contigs comprise 27.4% of the library sequences. Three of the ten contigs (7.7% of the library) show no match to known sequences in the database and four contigs (12.9%) have a highly repeated amino acid structure, which cannot be ascribed to a particular gene or gene family (Table 3). None of these highly repeated proteins show similar homologies to each other, being 36–40% identical at the nucleotide level. One contig (clone sbs04P0012K21) shows similarity to putative oxidoreductases. This classification is applied to all enzymes that have oxidoreductase functions, however some are involved in acting on superoxide radicals, which are produced during stressful situations (c.f. resting eggs). Also of significant interest are the two other matches to ferritin (pearl oyster) and hsp26 (Artemia urmiana). In studies on the crustacean Artemia franciscana, which forms cysts in response to adverse conditions, two proteins were shown to be present in large amounts in the cysts; hsp26 and artemin (a ferritin homologue) [23, 24]. This situation is clearly mirrored in the sbs04 library and these transcripts represent potential markers for resting eggs.
When similarity searches were run on the processed sequences from all the libraries, approximately 50% produced significant matches (expect score in excess of 1e-10 and therefore can be regarded as putative known genes) against the sequence databases. This percentage identification is much lower than a recently published EST library of B. plicatilis , in which 80% of sequences showed similarity to database entries.
However, the number of ESTs in the Suga library was relatively small (2,362 ESTs), non-normalised and a significant proportion of the sequences formed a single cluster encoding the small ribosomal sub-unit. In total, almost 23% of the 2,362 ESTs were comprised of 14 clusters with matches ranging from cathepsin L to beta tubulin. Comparison of our ESTs with those of Suga et al.,  using BLASTN (E value < 10-10) showed that 93% of the ESTs in the Suga library were represented in our dataset.
The main objective of this EST project was to develop transcriptome resources for B. plicatilis, which could be used in future global expression experiments. Therefore, the strategy of normalization and subtraction was used in library production. Although this should maximize the number of different transcripts obtained, it does mean that quantitative comparisons between libraries is not possible without further verification. Given this limitation, analyses were targeted at candidate genes involved in maintaining the stability and the integrity of cell compartments and macromolecules, as these are key factors for survival during dormancy. Searches were carried out using both BLAST and GO annotations and identified genes designated as or involved in:
Protection against reactive oxygen species (ROS) and detoxification: ROS are toxic in all life stages but they are especially problematic for dormant forms. In plant seeds desiccation causes loss of control mechanisms that maintain low ROS concentrations, thus the antioxidant activity has great importance .
Maintaining the native folded conformation of proteins: changes in osmotic pressure, pH or temperature as well as desiccation all challenge protein conformation  and may cause the formation of cytotoxic protein aggregates.
Late Embryogenesis abundant (LEA) proteins: which have been shown to be involved in desiccation in a number of organisms .
Trehalose biosynthesis: trehalose is well-known to be present in high concentrations in the dormant stages of various organisms  and small amounts have been found previously in B. plicatilis desiccated resting eggs .
Aquaporins: these are transmembrane proteins that serve as channels for water and small soluble molecules transport  and have been found to be important for desiccation tolerance in seeds  and for freeze tolerance in yeast .
Lipids and fatty acid metabolism: lipid metabolism is associated with hibernation in mammals  and the dauer form in nematodes . Vitellogenins are lipoproteins forming the yolk proteins [34, 35].
Protection against ROS and detoxification
A number of clones were identified associated with antioxidant activity GO term (GO:0016209), which was specifically narrowed to encompass clones encoding glutathione S transferases (Table 4). These genes belong to a superfamily of multifunctional proteins with fundamental roles in cellular detoxification, participating in the second phase detoxification and removal of xenobiotics after the action of P450 . They are widespread among all organisms. In total, 129 putative transcripts for glutathione S-transferase (E value between 9.0 e-17 – 2.0 e-45) were found in all the normalized libraries and in the sbs04 library (seven contigs and five singletons). More in-depth analysis revealed that these 129 transcripts comprise 11 distinct putative genes (designated Bpa-gst-1 to Bpa-gst-11, where Bpa stands for Brachionus plicatilis Atlit), which on sequence similarity searching appear to most closely match the alpha class of cytosolic GSTs. This is by far the most abundant of cytosolic subfamilies often comprising tens of members in each species  (c.f. 44 annotated GSTs identified in C. elegans ). Five of the putative rotifer GSTs show closest sequence matches to C. elegans genes, all of which are heavily documented in Wormbase with regard to expression and functional studies. Whilst those GSTs most similar to the rotifer transcripts all show expression responses to electrophilic stress , interestingly GST-5 occurred in an expression cluster of strongly regulated dauer genes (WBPaper00024393; ). Although functions of genes (even orthologues) differ between species, and this is particularly the case with multiple gene family members, the dauer is a stage of larval arrest in C. elegans, which could equate functionally to the resting-egg stage in the rotifer. Indeed, this gene was only found in the resting-egg library, clearly a candidate for further investigation. No GSTs were found in the first three subtractive libraries, but this may not be surprising given the small sample size of the sequencing effort, or alternatively, their number was small as a consequence of subtractions.
Further searches for antioxidant enzymes identified 135 clones, which assembled into 11 putative transcripts coding for peroxiredoxins (E values between 10-27 to 10-77) and thioredoxin peroxidase activity (E value of 10-57) (data not shown). Members of these families were found in all normalized libraries and Bpa-trpx-6 and Bpa-trpx-7 were additionally found in the sbs04 library associated with resting eggs (data not shown). Antioxidant activity is also associated with the enzyme phospholipid-hydroperoxide glutathione peroxidase, which protects membranes from oxidative stress by reducing the membrane hydroperoxides . Twenty-nine clones were found to be associated with phospholipid-hydroperoxide glutathione peroxidase activity (GO:0047066) in the EST libraries and two putative transcripts were produced after contig assembly and were named gpx1 and gpx2. The transcript gpx1 was only found in the MS and sbs01 libraries, whilst gpx2 was found in all the normalized libraries. BLAST results for the two transcripts were quite different: gpx1 matched mammalian glutathione peroxidase 3 (E value = 10-42) and gpx2 matched phosphlipid-hydroperoxide glutathione peroxidase of hydra and cattle tick (E value = 10-20), and of mammals (E value 10-18), although both confer antioxidant protection. The presence of two genes indicates a duplication of the gpx genes in the rotifer.
Dismutases catalyze the conversion of superoxide radicals into hydrogen peroxide, preventing their conversion into the more active hydroxyl radical . Five putative transcripts were found to be associated with superoxide dismutase activity (GO:0004784). Two transcripts show homology with the Mn-SOD (E value = 10-111) previously described by . Three other transcripts were found to be similar to Cu/Zn-SOD. Transcripts were found across several different libraries and so could be designated as ubiquitous. However, the previously identified Mn-SOD of B. plicatilis was found to be over-expressed in rotifers with an extended life span resulting from caloric restriction . Similarly in C. elegans, the DAF pathway (insulin, dauer associated) is also linked to caloric restriction and increased lifespan. Therefore these genes clearly have other roles in addition to putative functions associated with desiccation.
Maintaining the native folded conformation of proteins
Changes in environmental conditions (e.g. osmotic pressure, pH, temperature and desiccation), challenge protein structure and may cause the formation of cytotoxic protein aggregates and induce the production of "stress" proteins . Therefore, desiccation tolerant resting eggs need to develop mechanisms for coping with denaturing and aggregation of proteins. The classical cellular response to this type of stress is the induction of "heat shock" or chaperone proteins [42–44] which facilitate the disaggregation of proteins and their refolding to native conformation, and/or the production of small heat shock proteins, which prevent initial protein aggregation .
BLAST searches revealed 10 putative transcripts (6 contigs and 4 singletons) with matches to the HSP70 superfamily. Further analysis narrowed this to 6 putative genes as four of the sequences were potentially non-overlapping sections of the same genes (Table 5). Of the six putative genes, three showed significant sequence similarity to the classical stress inducible HSP70 gene (Bpa-hsp70-1, Bpa-hsp70-3 and Bpa-hsp-6). The best database match to this gene was from the organism Microplitis mediator, an orthopteran parasite and interestingly the publication annotation associated with this entry [Swiss-Prot:A8D4R0] indicates that this gene is associated with diapause. All other putative genes are HSP70 family members and although the functional annotation is variable, all are potentially involved in the stress response. HSPA9 (Bpa-hsp70-4) is additionally implicated in the control of cell proliferation and cellular aging, whilst GRP170 (Bpa-hsp70-5) has a pivotal role in cytoprotection, specifically triggered in response to hypoxia , both factors which are almost certainly associated with resting-egg formation. None of the rotifer sequences showed any significant similarity to the rotifer HSP70 sequence previously isolated [DDBJ:AB076052]), which is most similar to the constitutive form of this family (HSC70) and has been shown to be expressed during population growth . Members of the HSP70 family were found in all normalized libraries and in two of the subtracted libraries.
Although members of the HSP70 family are regarded as the classical cellular stress response, the small heat shock proteins are being increasingly identified as having a pivotal role in survival in stressful conditions and metabolic arrest . Encysted embryos of Artemia franciscana have been shown to contain substantial amounts of HSP26 [46, 47] along with a ferritin homologue , with both molecules acting as chaperones to prevent protein aggregation.
A search for small heat-shock proteins revealed five putative transcripts (5 contigs). One primarily matched an α-crystallin protein, (Ornithodoros parkeri, E value = 7·10-13), but this is not surprising as the α-crystalline domains are characteristic of small heat shock proteins  and indeed all the deduced amino acid sequences of putative rotifer small HSPs described here contain an α-crystallin conserved domain. This first transcript was found exclusively in the normalized libraries containing resting eggs (RE and FRE). Four additional different transcripts were identified in the subtractive sbs04 library (Table 6). Overall, small HSP transcripts were highly represented in the sbs04 library comprising 55 clones out of 1203 (~4.5%), and significantly, this was the only subtracted library to contain resting eggs. The sequence similarity of the putative rotifer small HSPs to small HSPs in the databases was low, in the region of 30% identity, but the small HSPs, contrary to the situation with HSP70, are not highly conserved between species. For example, comparing sequences from C. briggsae [Swiss-Prot:A8XDE7] to C. elegans [Swiss-Prot:P02513] and the pink hibiscus mealy bug [Swiss-Prot:A2I3W3] produces 28.6% amino acid identity/46% amino acid similarity and 29.2% identity/42.6% similarity, respectively. Given this lack of conservation, and that BLAST matches of the rotifer sequences were exclusive to other small HSPs, it is reasonable to assume that putative genes coding for small heat shock proteins are found in rotifers, particularly in resting eggs.
Regarding additional candidates for further investigation in resting-egg stage gene expression, a number of other heat shock proteins were identified (HSP60 and HSP80-100). Induction of the HSP60 protein was previously shown in B. plicatilis in response to various environmental pollutants [20, 48], and also in Plationus patulus in response to arsenic and heavy metal exposure  and therefore are potential "stress" proteins. Eleven putative transcripts with matches to HSP60 were found, as were putative transcripts with matches to other high molecular weight heat-shock proteins (HSP80-100). These candidates were found in all of the normalized libraries.
Late Embryogenesis Abundant (LEA) proteins
LEA proteins were originally identified in plant seeds during the late stages of embryonic development and are associated with desiccation tolerance throughout the life cycle of all major plant taxa . They comprise a protein family with three major groups (Groups 1–3). They have also been found in non-plant species and to date almost all non-plant LEA proteins belong to Group 3 . LEAs have been found in the nematode Aphelenchus avenae , bdelliod rotifers [53, 54] and desiccated A. franciscana cysts . The exact function of LEA proteins is as yet, unknown, but their importance in desiccation and stress tolerance has been comprehensively demonstrated. For example, silencing of the lea gene in C. elegans dauer juveniles caused a significant reduction of worm survival during induction of desiccation and in osmotic and heat stresses . LEA proteins were found to prevent protein aggregation in vitro . Also, in vivo experiments using Aphelenchus avenae LEA proteins introduced into human cell lines demonstrated that these proteins played a role in anti-aggregation and protein stabilisation during desiccation procedures .

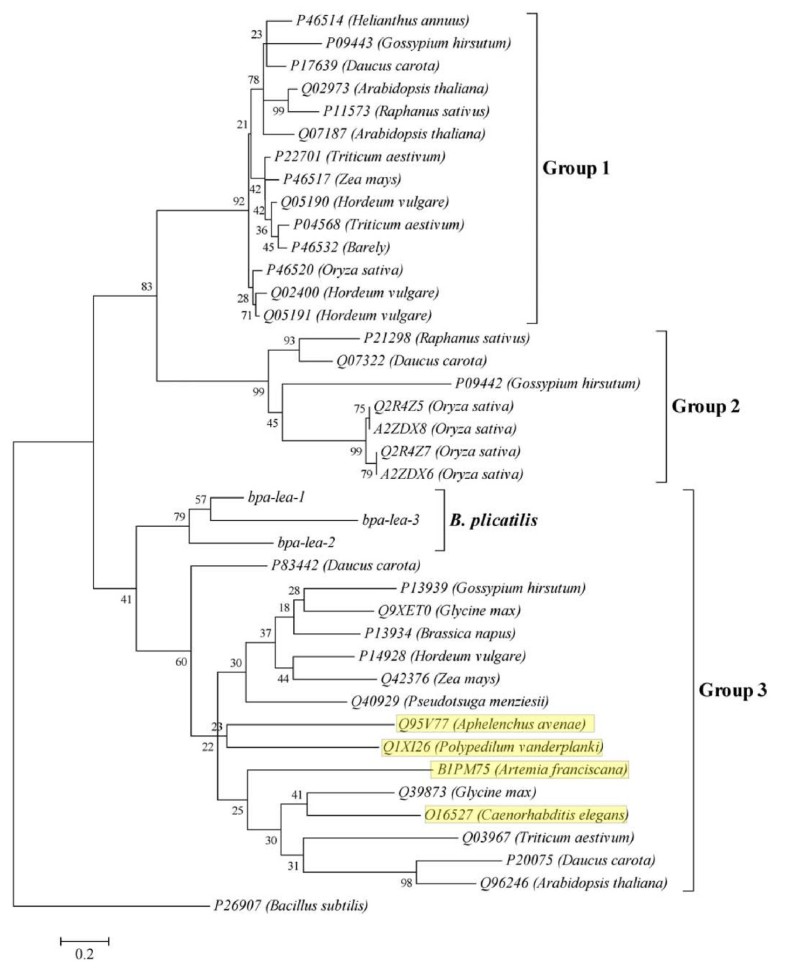

Three transcripts matching group 3 LEA proteins on BLAST sequence similarity analyses were identified (E values in the range of 1E-11 – 5E-25). These have been designated bpa-lea-1, bpa-lea-2 and bpa-lea-3 (Table 7). A rooted NJ tree was produced using translations of these transcripts with canonical plant LEA proteins from all three major groups  and the metazoan LEA proteins of C. elegans, A. franciscana, P. vanderplanki, and A. avenae (Figure 2). The putative rotifer genes were associated with the Group 3 protein family.
Trehalose is thought to play an important role in enhancing desiccation and stress tolerance . For example, accumulation of trehalose has been shown in diapausing cysts of Artemia  and also the stress responses of nematodes [62, 63]. Trehalose is synthesized from glucose, catalyzed by the enzymes trehalose-6-phosphate synthase (tps) and trehalose phosphatase . Trehalose can comprise ~17% of the dry mass in Artemia undergoing desiccation  and small amounts (0.35% of dry weight) have previously been found in B. plicatilis desiccated resting eggs . Also a transcript [DDBJ: BJ979617] with high sequence similarity to the tps gene, encoding to trehalose phosphate synthase, was previously identified in an EST library of B. plicatilis .
Ten ESTs (1 contig and 7 singletons) were identified in the different libraries for trehalose-6-phosphate synthase but there was no particular association with the libraries containing resting eggs. In-depth analysis revealed that the ten ESTs could be assigned to three groups comprising non-overlapping regions of the tps gene. In spite of this fragmentation, it was possible to identify that two paralogues (Table 8) were present and that the rotifer, like C. elegans, has a duplication of the tps gene . Other model organisms, such as the insects Drosophila melanogaster, Aedes aegypti, Anopheles gambiae and baker's yeast, S. cerevisiae  possess only a single tps gene, but this may be a reflection on lifestyle and the requirement to survive stressful conditions. In support of this, phylogenetic analysis has shown adaptive selection operating on the glucose-6-phosphate branch point enzymes and adjacent pathways (including tps) with the conclusion that this evolutionary pressure has played a significant role in metabolic adaptation . The C. elegans paralogues showed only 48% identity overall, but they were slightly different lengths (1229 amino acids [Swiss-Prot:O45380] (F19H8.1) and 1331 amino acids [Swiss-Prot:Q7YZT6](ZK54.2)) and particularly differed at the 5' and 3' ends. The two fragments of tps from the rotifer were 88.9% identical at the amino acid level, but these fragments did include the most conserved central portion of the gene and therefore the overall figure for amino acid conservation will be much lower if the whole sequence of each gene is compared.
Given the data and the nature of the way the libraries were produced it is not possible to determine the role of trehalose in resting-egg formation and survival solely using this data. In addition to the duplication of the trehalose-6-phosphate synthase gene in C. elegans, this species also shows a duplication of the trehalase gene, the enzyme which breaks down trehalose. In fact, there are four trehalase genes annotated in Ensembl [W05E10.4, F57B10.7, T05A12.2 and C23H3.7] . BLAST searches of the rotifer data produced three singletons with matches to trehalase (data not shown). Although these were single reads and therefore sequence quality was variable, there were sufficient differences between the putative translations of these clones to indicate that they were potentially three different genes, demonstrating another situation analogous with the nematode. Although the C. elegans sequences are similar at the sequence level to other characterized trehalases (hence the annotation), they are designated as "unknown function", as RNAi studies produce no obvious phenotype. It has yet to be determined why there are four copies of this gene in C. elegans and what is the exact function of each paralogue. By extrapolation the same can be inferred for the three putative trehalases in the rotifer.
Aquaprorins are transmembrane proteins that serve as channels for water and small soluble molecules transport . These proteins have been found to play a role in desiccation tolerance in seeds  and freeze tolerance in yeast . Three different putative aquaporin transcripts were identified in the EST libraries (Table 9) with E values in the range of 6E-22 – 1E-26. These were designated: bpa-aqp-1, bpa-aqp-2 and bpa-aqp-3. Exact assignment of these putative rotifer genes to aquaporin family members was difficult because of relatively short sequence lengths and low percentage similarity to aquaporin genes already in the databases. However, on BLAST assignment, the first two transcripts matched aquaporins 3, 7, 9 or 10, which are glycerol channels, while the third matched aquaporins 4, 2, 1 or the plant protein TIP. These genes are under further investigation and full length transcripts are being generated by RACE PCR for functional analyses.
Lipid and fatty acid metabolism
Also of interest were genes associated with lipid metabolism as this may be the only source for energy whilst embryonic development is arrested and during hatching if similarities are assumed with other dormant or hibernating organisms. For example lipid metabolic pathways were up-regulated in the C. elegans dauer larval stage . Lipids also serve as the main energy source in hibernating mammals . Resting eggs contain extremely large numbers of droplets with neutral lipids  and these may serve as the only source for biosynthetic processes during dormancy and hatching via the glyoxylate cycle and gluconeogenesis. There were 28 clones (4 contigs and 2 singletons) matching lipoprotein lipase (Table 10) in the libraries. Lipoprotein lipases are also known to serve as yolk proteins in dipterans eggs , in contrast to vitellogenins that are the main yolk proteins in almost all egg forming organisms [34, 70]. Surprisingly, no BLAST matches were identified for vitellogenin, suggesting that lipoprotein lipase may serve as a yolk protein of B. plicatilis. Allied to the possession of lipoprotein lipases are fatty acid-binding proteins (FABP) which are assumed to be involved in fatty acid uptake, transport and metabolism. These proteins are members of the lipocalin superfamily that are transporters of small hydrophobic molecules such as lipids, steroid hormones, bilins and retinoids . Both fatty acid and retinoid binding may be important for resting-egg formation as fatty acids may serve as an energy source during dormancy and retinoids are associated with embryonic development [72, 73]. Five putative transcripts were identified as lipocalins (Table 11). For each transcript, the highest number of clones within the normalized libraries was found in library FRE (females with resting eggs) and one transcript was also found in library sbs04. These results may suggest a role of lipocalins in resting-egg production.
Since all libraries were produced using either normalized or subtractive methods, real-time PCR experiments were conducted in order to assess the expression of selected genes in resting eggs and in resting-egg producing females (see [additional file 1] Table S1). The expression patterns of the selected genes were determined in resting eggs relative to amictic eggs, and in resting-egg producing females relative to amictic females (Fig. 3). It should be noted that in all cases the 95% confidence limits in the female samples were expanded compared to those of the egg samples. This may be attributed to the larger inherent variability between females, related to their age and size.

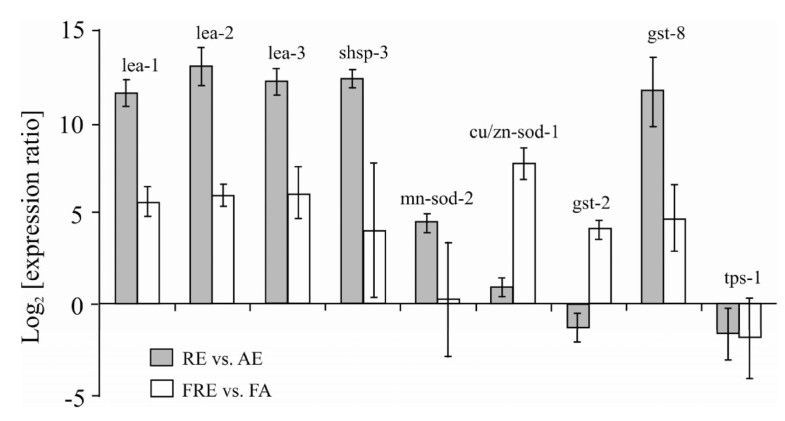

Genes upregulated in resting eggs include all the lea-like transcripts, a small heat shock protein and two of the genes involved in antioxidant activities: one of the glutathione S-transferases (Bpa-gst-8) and a superoxide dismutase (Mn-sod-2). Two gst-like transcripts were chosen for analysis: Bpa-gst-8, identified in the normalized libraries associated with resting eggs (RE, FRE) and also the subtracted library containing resting eggs, and gst-2 found in all the normalized libraries. As mentioned above, gst-8 is up-regulated in resting eggs and in resting-egg producing females. No significant change in the expression of gst-2 was found in resting eggs relative to amictic eggs but it was slightly up-regulated in resting-egg producing females. Therefore, the two gene family members clearly play different roles in cellular defense mechanisms.
The relative expression of tps-1 transcript was determined in order to evaluate the significance of trehalose synthesis in resting-egg production. The results do not show any significant change in the expression of the tps-1 like gene in resting eggs relative to amictic eggs or in resting-egg producing females relative to amictic females. Hence, the expression pattern of the tps-like transcript suggests that this gene may not be associated with resting-egg production, although it cannot be discounted that trehalose production is regulated at the translational level or enzyme activity rather than the transcriptional level.
The production of both normalized and subtractive EST libraries from different samples of rotifer including resting-egg producing females, resting eggs and resting eggs during hatching, resulted in a high coverage of the transcriptome of Brachionus plicatilis. A total of 47,926 clones were sequenced, and these were assembled into 18,000 putative transcripts. Genes known to be associated with desiccation tolerance in other organisms were identified in the EST libraries. These included genes associated with antioxidant activity, low molecular weight heat shock proteins and LEA proteins. Real-time PCR confirmed that LEA transcripts, small HSPs and some antioxidant genes were upregulated in resting eggs, therefore suggesting that desiccation tolerance is a characteristic feature of resting eggs even though they do not necessarily fully desiccate during dormancy. Production of trehalose is commonly associated with dormancy and genes associated with trehalose synthesis were found in all the normalized libraries. However, the role of trehalose in resting-egg formation and survival remains unclear since there was no significant difference between resting-egg producing females and amictic females in the expression of tps-1 gene. Matches to lipoprotein lipase proteins suggest that, similar to the situation in dipterans, these proteins may serve as the yolk protein in rotifers and probably not vitellogenin, that is found in most other egg producing organisms. The 18,000 Brachionus plicatilis putative transcripts will serve as a database for future global expression experiments, particularly for the further identification of dormancy related genes.
Rotifer cultures and sample collection
Rotifers were hatched from resting eggs produced in the laboratory from rotifers collected at a seaside pond in Atlit, (40 km south of Haifa, Israel) in 1981. Some of the resting eggs were hatched in 2003 and resting eggs produced from them were stored in the laboratory. Resting eggs from 1981 and 2003 were stored in the dark at 4°C and hatched in 2005. Four groups of samples were collected for libraries; (I) mixed stage cultures containing both amictic and mictic females, (II) Resting eggs (RE), (III) resting eggs during hatching and (IV) mictic females with resting eggs
(I) Mixed stage rotifer cultures
Four cloned cultures and one non-cloned culture were grown in 400 ml sea water medium (40‰). The rotifers were fed with the algae Nannochloropsis sp. Mixis was induced by transferring the cultures to diluted sea water medium (20‰). Samples were collected when males appeared in the cultures. Samples for RNA extraction were collected by sieving the upper part of the culture with a plankton net (60 μm mesh). Rotifers were washed with sterile 20‰ diluted sea water and were re-suspended for 1 hr in sterile 20‰ diluted sea water, in order to allow rotifers to empty their gut content. Rotifers were sieved again with the plankton net, washed with sterile diluted sea water (20‰) and transferred into a 1.5 ml centrifuge tube. The rotifers were concentrated using a by short centrifugation step. The pellet containing the rotifers was frozen in liquid nitrogen and kept at -70°C until required for RNA extraction.
(II) resting egg collection
About 30,000 resting eggs were collected from two 400 ml of a non-cloned cultures that were maintained in 10‰ diluted sea water.
(III) resting eggs during hatching
Resting eggs were stored for three months in the dark at 25°C. Hatching was initiated by exposing the resting eggs to light. Samples were collected 20 and 30 hrs after the initiation of hatching initiation and used for the construction of the cDNA library.
(IV) Mictic females with resting eggs
Females with resting eggs were hand picked from cultures, due to their low abundance in the mixed cultures. About 1,000 females with resting eggs were picked from a cloned culture (clone 1B4) grown in a 400 ml 20‰ diluted sea water medium. This culture was also used for the production of the subtractive libraries.
RNA extraction and library preparation
RNA was extracted with the TRIzol® reagent (Invitrogen) following the manufacturer instructions. cDNA was synthesized using the SMART approach (SMART PCR cDNA synthesis kit, Clontech, U.S.A.) and subsequently normalized using duplex-specific nuclease (Trimmer kit, Evrogen, Russia) according to manufacturer's instructions and directionally cloned into pAL32 (Evrogen, Russia). Subtractive cDNAs were constructed by suppression subtractive hybridization (Evrogen, Russia) and cloned via the TOPO TA® cloning system (Invitrogen, U.S.A.). Plasmids were transferred via electroporation into E. coli DH10B (Invitrogen, U.S.A.). Plasmids from the normalized libraries were 5' end sequenced using the pALforward primer (5'-CTCGGGAAGCGCGCCATT-3') and Big Dye Terminator chemistry. Clones of the subtractive libraries were sequenced from both ends using T7 and T3 primers.
Sequences were determined on ABI 3730XL capillary sequencers (Applied Biosystems, USA).
cDNA libraries construction and characterisation
Four normalized libraries and four subtractive libraries were constructed:
MS: Normalized library of a mixed population consisting of amictic females, mictic females and males. The library was generated from a combination of four cloned cultures and one non-cloned culture
RE: Normalized library of resting eggs. The resting eggs were obtained from a non-cloned culture.
REH: Normalized library of resting eggs in various stages of hatching. The library was constructed from resting eggs that were hatched for 20 or 30 hrs.
FRE: Normalized library of mictic females with resting eggs. The females were collected from a resting-egg producing clone (clone 1B4).
sbs01: Subtractive library of a mixed stage population from a combination of cloned and non-cloned cultures (tester) vs. mixed stage population of a clone 1B4 (driver)
sbs02: Subtractive library of a mixes stage population of clone 1B4 (tester) vs. a mixed stage population of a combination of cloned and non-cloned cultures (driver).
sbs03: Subtractive library of a mixed stage population of clone 1B4 (tester) vs. mictic females with resting eggs of clone 1B4 (driver).
sbs04: Subtractive library of mictic females with resting eggs as tester vs. mixed stage population of clone 1B4 (driver).
Sequence analysis and EST clustering
Sequence fasta files were processed using the script Trace2dbest , which incorporated the phred and crossmatch programmes [75, 76]. A minimum cut-off value of 100bp was applied after quality control processing for generating the submission file for EMBL (Accession numbers, FM897377–FM945301). Tgicl  was used for clustering the fasta files, incorporating quality scores, for each of the five libraries, as well as for all the libraries together. The clusters were database searched using Blastx  against the Uniprot/Swissprot and Uniprot/Trembl databases , with matches annotated for all scores with an expect score in excess of 1e-10. These annotations were then used to map Gene Ontology identifiers . Sequence manipulation was carried out using the EMBOSS suite of programs . Multiple sequence alignments of LEA proteins were performed using the ClustalW program. . Phylogenetic trees were drawn with MEGA4  using the Bacillus subtilis glucose inducible starvation protein B (Accession no: P26907) as an outgroup.
Real-Time PCR experiments
The relative abundance of bpa-lea-1, bpa-lea-2, bpa-lea-3, bpa-shsp-3, bpa-mnsod-2, bpa-cusod-1, bpa-gst-11, bpa-gst-4, bpa-tps-1 transcripts (see [additional file 1] Table S1 for the list of primers) were normalized to an elongation factor 1α housekeeping sequence using the equation: ratio = (Etarget)CP_target/(E ef1a )CP_ef1awhere E = 10-1/slop, according to the method described by Pfaffl et al., . The PCR mixture consisted of 1 μl of cDNA sample, 70 nM of each primer and 12.5 μl of SYBR Green master mix (ABgene, UK), in a final volume of 25 μl. Amplification were preformed with biological triplicate samples using a GenAmp 5700 thermocycler (PE Applied Biosystems, USA) according to the manufacturer's protocol.
ESTs were deposited at EMBL with the accession numbers: FM897377–FM945301.
